OEM Self-cleaning Filter The Ultimate Water Purification Solution

Condition : New

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops

Showroom Location : Viet Nam, Indonesia, Russia, Thailand, Argentina, Bangladesh

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : Gearbox, Bearing, Motor, PLC

Place of Origin : Sichuan, China

Brand Name : TOP

Material : Wooden box, SS304/316

Weight : Depends on capacity

Size : Depends on capacity

Warranty : 1 Year

Productivity : 10~500m3/h

Weight (KG) : 3000 kg

Product name : Self-cleaning filter

Application : Solid separation

Other name : Water filter

MOQ : 1 Unit

Operation : Automatic, 24hrs

Micron Rate : 20mm above

Control : Electric Auto Control (PLC Siemens)

Cleaning : By brush/scraper

OEM : Yes

Packaging Details : Standard export packing (or as per your requirement)

Port : shanghai

Supply Ability : 30 Set/Sets per Month

Price : $3,000.00/sets >=1 sets

MOQ : 1pc

Contact Now

Product Description

TPBC series self-cleaning filter (TPBC Filter for short), is the high efficiency brushing self-cleaning filter, removing impurities particles on the filter element surface by mechanical brushing and continuously filtering on-line. TPBC filter is designed for fine and accurate filtration ranging from 20-500 micron. It can avoids extruding and breaking the impurities and is capable of the filtration for water and viscous liquid.

Products are widely used in water treatment, paper-making, petroleum, bio-pharmaceuticals, printing ink, grease, food and beverage, etc.

OEM Self-cleaning Filter The Ultimate Water Purification Solution

Working principle

Pressure difference control: With the impurities increasing on the mesh screen, filter cake is gradually forming, which increase the pressure difference between inlet and outlet, when pressure reach the set value(such as 0.05Mpa), the brush will automatically start to clean the screen, and 5 seconds later the sewage discharge valve will be open.

Time control: When the preset time is reached, the brush will automatically start to clean the screen, and the sewage is discharged under the control of sewage time interval system.

Under double-mode control of pressure difference and time, no matter which mode start to work at first, once start, it will recount time again, which will prevent scraper from meaningless work, reduce machine wearing and extend the service life of screen and brush, but also help form filter cake and increase the filter efficiency.

OEM Self-cleaning Filter The Ultimate Water Purification Solution

Advantages

Automatic 24-hour on-line filtration, no frequent changing out and cleaning
No disposable filter media consumption, save filter media cost and environment cost
Stainless steel brush, good impurity removing performance, avoid impurities extruding and breaking
Top quality V-SLOT filter element, accurate slots, extremely smooth, easy to brush, high strength and long service life
Very low pressure drop, stable flow rate, save energy consumption, good for process stability
Low cleaning water consumption, 5% of the filtered water amount, 15~30 s washing time, continuously filtering on-line

Buying Guides

TPBC Brush Self-cleaning Filter

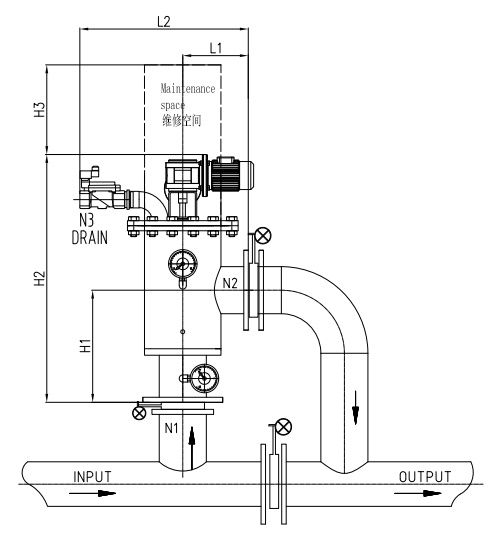

Model	Water inlet/outlet(mm)	Filter area(m2)	Capacity (woven mesh/V-SLOT) (m³/h)	H1	H2	H3	L1	L2
TPBC-104	100	3725	100/80	260	950	400	240	600
TPBC-106	150	5640	160/130	370	1250	400	300	660
TPBC-108	200	6330	300/220	400	1250	700	325	690
TPBC-110	250	6330	450/220	500	1350	700	325	690
TPBC-112	300	8000	650/320	600	1380	1000	325	690
TPBC-114	350	8000	900/450	600	1380	1000	325	690
TPBC-116	400	12150	1100/600	650	1420	1200	450	850

For orders, please specify: slot size, flow rate, material, control type (time control / level control), and any other requirements.
